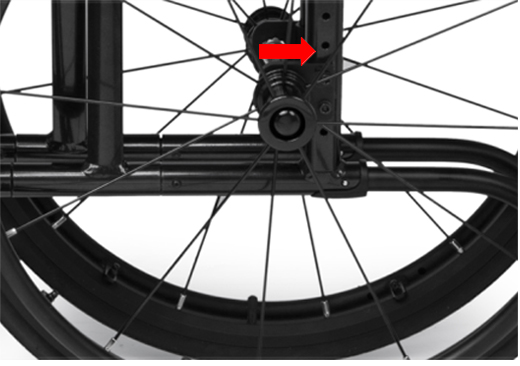

The Rear Axle U-bracket functions perfectly. Achieve seat-to-floor heights in 1" increments and adjust Center of Gravity over a 3" range by simply flip over the U-bracket from front to rear side of the frame vertical tube. With a more rigid design than its competitors, which offers the best performing ride in its class.
02/
20102030405
300 LBS STANDARD WEIGHT CAPACITY
The lighter the better, but lighter and stronger is more rare and precious. Our magnesium wheelchair has a mere transport weight of 19 lbs and a standard weight of 30.8 lbs. But it has a 300 lbs standard weight capacity and passed WC19 crash test. That makes our chair the lightest AND strongest in the magnesium folding wheelchair category.
03/
30102030405
Half-folding Seat Back
Our wheelchair is equipped with a half-folding seat back, making it compact and convenient. The sturdy frame ensures stable support. The design of the half-folding seat back allows for easy storage and transportation. It is an ideal choice for those seeking a multi-functional and comfortable mobility solution.
04/
40102030405
12 Spoke Rear Wheel Assembly
The rear wheel assembly is composed with 12 high-quality 10G steel spokes, 6061 series aluminum rim and hub, providing the wheelchair with stable and reliable performance. The design of the steel spokes enhances rigidity, ensuring the wheel assembly's strength and durability. The lightweight construction of the rim and hub allows for easier and smoother propulsion, enabling the rider to achieve optimal performance with each push.
05/
50102030405

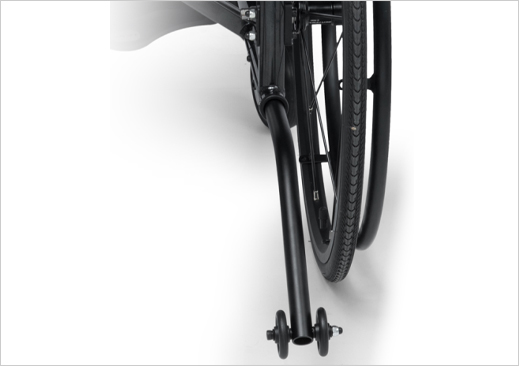

Anti-tipper
A quick-release, flip-up anti-tipper, ensuring stability and safety for users during their travels. It prevents the wheelchair from tipping over accidentally and provides balanced support. Its intelligent design allows the wheelchair to maintain balance on different surfaces and inclines, providing users with a stable mobility experience. Whether indoors or outdoors, it enables us to move with confidence and elegance..
Specifications
Transport Weight：
19.14 lbs.*
8.7 kg*
Seat Width：
12-20 in.
30-50 cm
Seat Depth：
12-20 in.
30-50 cm
Front Seat Height：
17.5-21.0in.
45-53 cm
Rear Seat Height：
15.5-20.5 in.
40-52 cm
Horizontal Frame Tubing Size.
1 in.
2.54cm
Vertical Frame Tubing Size：
1.13in.
2.85 cm
Weight Capacity：
300 lbs.
136 kg
Ansi Resna WC-19 Transit：
Yes
Yes
*18"x16" Frame, Footrest, Anti-tipper and Rear Wheels Removed.
